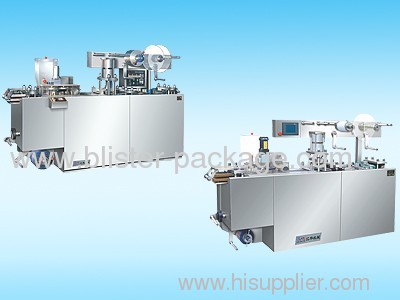

DPP-140D/E Automatic Blister Packaging Machine for capsule and tablet

Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: DPP-140D/E
Packing: wooden case
Processing: Blister Packaging Machine
Type: Others
Brand Name: Bolin
Means of Transport: Ocean
Delivery Date: 60 days
Automatic Grade: Automatic
Usage: Others

package pharmaceutical, food, candy, battery, toothbrush, chewing gum,glue water,perfume, lipstick, for alu-alu and alu-pvc and paper-plastic

             DPP-140D/E Blister Packaging Machine is specially designed for pharmaceutical factories which meets GMP & CE standard. This packing machine is characterized by novel outline, convenient operation,complete function, adjustable travel, simplicity of changing moulds and plates, wear well. Its high quality is welcomed by users.
         The main functions are:
1. Package: pharmaceuticals (capsules, tablets, pills and etc.); food (chewing gum, candy, chocolate and etc.); other similar products.

2. Production flow:
PVC ---preheating---pocket forming---double feeding---hot sealing---code embossing---perforating---trimming.
ALU foil cold extrusion- pocket forming---double feeding---hot sealing---code embossing---perforating--- trimming

3. All functions of this packager are automatically completed continuously.
4. It can be designed to do super depth blister packaging (e.g. big candied pills) according to user's requirements.

DPP-140D: with PC automatic button
DPP-140E: with PLC control system
Specifications:
Cutting frequency
40-80 blister plates/minute
Productivity
36,000-72,000 pieces/hour
Max. forming area
130mm×100mm
Max. forming depth
18mm
Adjusting range of travel
40mm-110mm
Standard plate size
80×57mm
Width and thickness of PVC and PTP aluminum foil
PVC: 140×0.25-0.5mm   PTP: 140×0.02-0.03 mm
Power source
220V  50HZ
Gross power
Main motor: 1.1kw      heating power: 2.4kw
Machine size
2020×650×1400mm
Encasement size
2200×700×1700mm
Weight
750KG

more details pls contact refinexia@163.com
