Tropical Pharmaceutical Blister Packaging Machine (ALU-PVC-ALU)

Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: DPR-320B
Packing: wooden case
Processing: Blister Packaging Machine
Type: Others
Packaging: Others
Means of Transport: Ocean
Delivery Date: 60 days
Automatic Grade: Automatic
Usage: Others
Brand Name: Bolin

photoelectric alignment, fibre detecting device, safety cover

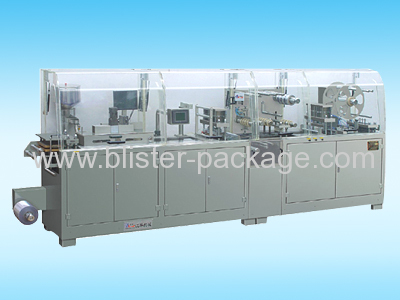

DPR-320B Tropical (ALU/PVC/ALU) Blister Packaging machine is invented on the basis of motional-level key mew products and also adopted three domestic patents (patent No, 01239101. 8, 01239100. X). More-over it won the third-class award of scientific and technological progress of Rui'an city. These not only improve the technical level and capability, but make the packaging further perfect.


     (1)Transmission organization: Adopt the most new-type high-power transmission to arrange the chain and drive the main drive shaft, has avoided the errors and noises of its gear wheel transmission.

     (2)Electric apparatus system: Adopting German Siemens PLC controlling system result in that every engineer location of transmission of the machine is procedure.

     (3)Detection system: It will according to custom demand adopting video detector that can modify of the 5% different pharmaceutical sample of the shape and delete it automatically, or adopt the digital calculating equipment of the optic fiber that can detect the number of medicines.

     (4)Pneumatic system: Adopt photo electricity control and can program with PLC that make every organization of operation accurate, also enable packing the products in many worker's location and the operation at a long distance. It guarantees the stability of moving ahead simultaneously.

     (5)Photoelectric equipment: Using photoelectric indexing device makes to be clear and pleasing to print pictures and texts, and improve the level of the packing of products.

     (6)Combined body: It is convenient to enter the purification workshop already fitted up smoothly for the user.

     (7)Two-way boundless blanking organization vertically and horizontally: Adopt this patented technology, can economize 5% of the packing cost for users and economize about RMB400, 000yuan of wrappings every year.

     (8)All the parts is made of stainless steel and prevent the across infects which can meet the GMP standard.

Specifications
Productivity:
40000. 00-100000. 00pieces/h
Cutting frequency:
5-30(Sleeplessly adjustable)Time/min
Travel adjusting range:
40-130mm
Max. Of forming area and depth of PVC:
300×120×14mm
Max. Of tropic Aluminum forming area and depth:
280×110×15mm
Heating plate power:
1.5(upper)KW 1.5(lower)KW
Hot-sealing power of Alum, -Plastic:
3KW
Hot-sealing power of tropic Aluminum:
7KW
Power of main motor:
2.2KW
Capacity of air compressor:
 ≥0.2m3/min
Size of wrapper(width):
PVC Plastic320mm, Alum. Foil PTP320mm,Tropic Aluminum320mm
Weight:
2000kg
Overall size:
5100×750×1600mm
Size of encasement:
2800×750×1600mm 2300×750×1600mm
